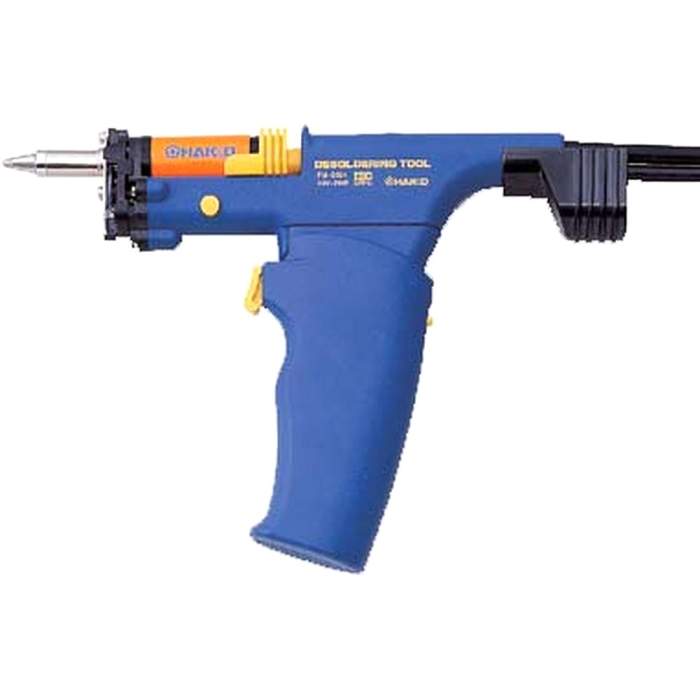

Hakko FM-2024. Desoldering Tool 70W

Name: Hakko FM-2024. Desoldering Tool 70W
Brand: Hakko
SKU: HK-FM2024-43
Price: 307.99 EUR
Availability: InStock

€307.99

Excl. 19% VAT , excl. Shipping Cost

Article

HK-FM2024-43

Manufacturer Nr.

FM 2024-43

Integrated desoldering unit equipped with nozzle with built-in heater provides excellent thermal recovery
Nozzle can be replaced with simple one-touch operation
Used together with an FM Series station

The product may differ from the illustration

Frequently Bought Together

Total price

Integrated heater realizes great thermal recovery. Nozzle can be replaced with simple pulling-out operation.
	Choose station to suit the operation
	Specifications vary by station combined.
	- Vacuum pump type desoldering tool
	HAKKO FM-204 Vacuum pomp type HAKKO FM-206 (3-handpiece insertion, optional soldering, SMD rework possible)
	- Distribution equipment for plant air or other type of compressed air is required.
	HAKKO FM-202 (Discontinued Products)
	HAKKO FM-203(2-handpiece insertion, optional soldering, SMD rework possible)
	Distribution equipment for plant air or other type of compressed air is required.
	Two power receptacles are required.
	One unit can serve dual usage of Gun/Straight configurations
	The composite nozzle ensures superior thermal recovery
	Lightweight design
	ESD safe by design

Gun configuration	Straight configuration

Nozzle cartridge can be replaced even before the nozzle becomes cool.

Detach the nozzle remover.	Firmly attach the nozzle remover to the nozzle cartridge as shown in the picture.	Pull the nozzle remover with the nozzle cartridge in one stroke.

Packing List

Choose HAKKO FM-2024 to suit its Applicable Station.

Part No.	Packing List	Applicable Station
No.FM2024-02	MODEL FM-2024/24V-70W 1. MODEL FM-2024 Desoldering tool 2. Handle (for gun configuration) 3. Filter pipe assembly 4. Instruction manual	HAKKO FM-204
FM2024-03	1. Iron holder 2. Cleaning sponge 3. Desolder control box (DCB) 4. MODEL FM-2024 Desoldering tool 5. Filter pipe assembly 6. Nozzle remover 7. Handle (for gun configuration) 8. Nozzle ø1.0 (No.N1-10) 9. Cleaning drill (for heating element) 10. Ceramic paper filter (10 pcs.) 11. Cleaning pin (for nozzle ø1.0) 12. Instruction manual No photo for No.12	HAKKO FM-202 (Discontinued Products)
FM2024-22	1. Iron holder No.FH200-06 (with cleaning sponge) 2. Desolder control box (DCB) 3. Cleaning drill (for heating element) 4. Filter pipe assembly 5. Ceramic paper filter (10 pcs.) 6. MODEL FM-2024 Desoldering tool 7. Handle (for gun configuration) 8. Nozzle remover 9. Connecting cable * Nozzle is not included. Purchase your required size separately	HAKKO FM-203
FM2024-**	1. Iron holder: No.FH200-05 (with HAKKO 599B tip cleaner) 2. Cleaning drill (for heating element) 3. Filter pipe assembly 4. Ceramic paper filter (10 pcs.) 5. MODEL FM-2024 Desoldering tool 6. Handle (for gun configuration) 7. Nozzle remover 8. Connecting cable * Nozzle is not included. Purchase your required size separately	HAKKO FM-206

Specifications

* Total length and weight (w/o cord, hose)

-DCB (Desolder Control Box)

Power Consumption	12W
Output	24V
Vacuum Generator Vacuum Pressure	Ejector type Max. 93kPa (700mmHg)
Suction Flow	20L/min
Tip to Ground Potential	< 2mV
Applied Air Pressure	490kPa (5.0kgf/cm²) When in use (trigger or button is pressed)
Compressed Air Consumption	46L/min
Outer Dimensions	119(W) x 45(H) x 172(D)mm
Weight	1.2kg

Replacement parts

Part No.	Name	Specifications
FM2024-03	HAKKO FM-2024 conversion kit	70W (24V), for FM-202 (discontinued)
FM2024-22	HAKKO FM-2024 conversion kit	70W (24V), with DCB
FM2024-02	Desoldering tool FM-2024	70W (24V)
B2872	Handle	for gun configuration
B2876	Nozzle remover
A1511	Filter pipe assembly (qty 10) * Discontinued. The replacement is "A1612".	with ceramic paper filter
A1612	Filter pipe assembly (qty 10) * The replacement for A1511.	with ceramic paper filter
B2873	Cleaning drill	heating element
B1087	Cleaning pin	nozzle Φ1mm
A1514	Ceramic paper filter (qty 10) * Discontinued. The replacement is "A1613".
A1613	Ceramic paper filter (qty 10) * The replacement for A1514.
FH100-03	Iron holder <w/cleaning sponge> * Discontinued
B2881	Iron holder assemly <for FM-2024>	with screw, for FH-100 (discontinued)
FH200-06	Iron holder <w/ cleaning sponge>	with power-save function
B3413	Iron holder assembly <for FM-2024>	with screw, for FH-200 with power-save function
A1519	Cleaning sponge	yellow
A1536	Cleaning sponge * Discontinued. The replacement is "A1519".	green
B3253	Connecting cable
B2300	Heat resistant pad
B2880	Vacuum outlet cap	with O-ring
A1512	Front holder
A1513	Back holder bushing
B2877	Hose
B2878	Back holder
B2879	Flange

Options

Maintenance

Category	Title
How to use	Combinations of handpieces and soldering tips for the FM/FX series

More Information
Execution	TEC
Manufacturer Nr.	FM 2024-43
Manufacturer	Hakko
EAN	4962615037528
Weight	0.009900
Note	Es gibt keine Lieferung von Hakko Produkten in die Schweiz
HS-Code	85151100
