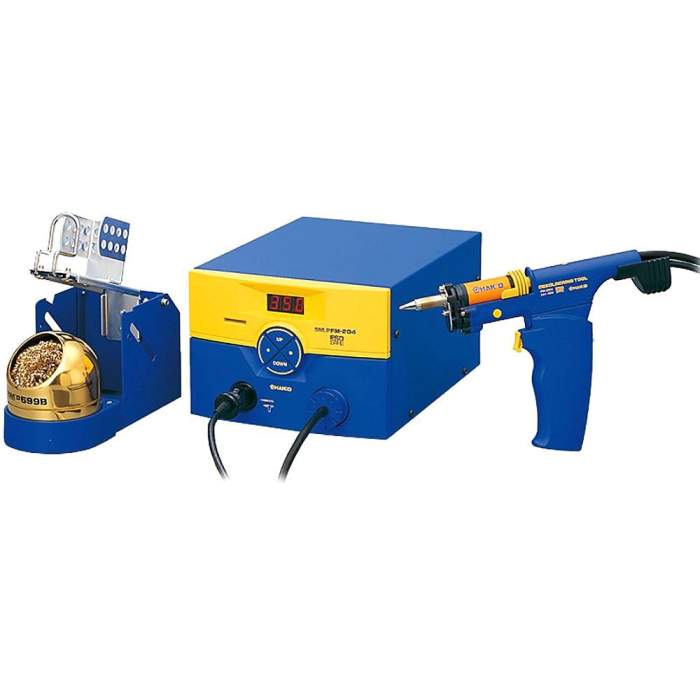

Hakko FM-204. Desoldering Station 120W

Name: Hakko FM-204. Desoldering Station 120W
Brand: Hakko
SKU: HK-FM204-11
Price: 840.47 EUR
Availability: InStock

€840.47

Excl. 19% VAT , excl. Shipping Cost

Article

HK-FM204-11

Manufacturer Nr.

FM 204-11

Vacuum pump type desoldering tool with excellent thermal recovery
Digital display ensures easy and reliable temperature control
Sleep function that works with iron holder curbs the oxidation of nozzles

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Hakko FM-204. Desoldering Station 120W
€840.47

Excl. 19% VAT , excl. Shipping Cost
Hakko FX-888D. Digital 1-Channel Soldering Station 70W
€128.25

Excl. 19% VAT , excl. Shipping Cost
Hakko FM-203. Soldering, Desoldering and SMD Rework Station 140W
€710.51

Excl. 19% VAT , excl. Shipping Cost

Total price

Even easier-to-use FM Series Desoldering Tool

Vacuum pump type desoldering tool

Excellent thermal recovery

·The integrated nozzle containing both heating element and sensor provides higher thermal recovery than conventional tips.

Soldering work is possible by replacing the handpiece.

Connectible handpieces:
- Desoldering handpiece (HAKKO FM-2024)
- Soldering iron (HAKKO FM-2027)
- N₂ soldering iron (HAKKO FM-2026)

Selectable grip

Two-way use of gun type and straight type is available.


Gun configuration	Straight configuration

Easy maintenance

Filter pipe replacement:
- Disposable paper filter pipe
- Easy to dispose of paper and solder separately
Nozzle replacement:
- Safe to replace with nozzle remover
- Replaceable even before the end of nozzle has cooled down


(1) Detach the nozzle remover	(2) Firmly attach the nozzle remover to the nozzle cartridge as shown in the picture.	(3) Pull the nozzle remover with the nozzle cartridge in one stroke.

Power save function
Sleep function:
When the handpiece is placed on the Iron Holder (FH200-01/FH200-02), the sleep function operates and decreases the unused tip temperature up to approximately 200°C , preventing the tip from being oxidized.
In addition, this function can relieve the loads applied to the tip due to the high-temperature settings required for lead-free soldering
* The connecting cable enables the iron holder and temperature controller to be activated.

Auto power shut-off function:
By connecting the iron holder (HAKKO FH-200) to the connecting cable, the auto power shut-off function is activated in the same manner as the sleep function.
- Selectable buzzer and alert ON/OFF setting Buzzer and alert sound generation upon error and when reaching the setting temperature can be selected. ON/OFF-settable buzzer sound

Packing List

Model No.	Packing List
FM-204	1. Main unit (HAKKO FM-204 station) 2. Iron holder (No. FH200-05; with tip cleaner) 3. Ceramic paper filter (10pcs.) (for replacement) 4. Cleaning drill (for heating element) 5. Filter pipe assemblies (2pcs.) (originally equipped to the unit and one for spare5) 6. Control card 7. Desoldering tool (Model FM-2024) 8. Connecting cable 9. Nozzle remover 10. Handle (for gun configuration) 11. Power cord 12. Instruction manual 13 Tip tray No photos are shown for parts 5,11, 12 and *13.

* This product does not include a nozzle. When purchasing this product, be sure to order a nozzle suitable for the work.

Specifications

Model No.	FM-204
Power consumption	120W
Temperature range	FM-2024 : 350 to 450ºC FM-2026/2027 : 200 to 450ºC
Temperature stability	±5ºC at idle temperature

・Station

Output voltage	AC 24V
Vacuum generator	Vacuum pump, double cylinder type
Vacuum pressure	Max. 80kPa (600mmHg)
Suction flow	15L/min.
Dimensions	160(W)×120(H)×225(D)mm
Weight	3.7kg

・Desoldering Tool

Power consumption	70W (24V)
Nozzle to ground resistance	<2Ω
Nozzle to ground potential	<2mV
Heating element	Composite heater
Cord length	1.2m
Total length	180mm (with Φ1.0mm nozzle)
Weight	65g (with Φ1.0mm nozzle)

* The suction flow is measured at the filter case suction port of station.
* Total length and weight (w/o cord, hose)

Replacement parts

Part No.	Name	Specifications
B2972	Control card
B2876	Nozzle remover
FH200-05	Iron holder <w/ cleaning sponge>	with power-save function
A1514	Ceramic paper filter (qty 10) * Discontinued. The replacement is "A1613".
A1613	Ceramic paper filter (qty 10) * The replacement for A1514.
A1511	Filter pipe assembly (qty 10) * Discontinued. The replacement is "A1612".	with ceramic paper filter
A1612	Filter pipe assembly (qty 10) * The replacement for A1511.	with ceramic paper filter
B3253	Connecting cable
FM2024-02	Desoldering tool FM-2024	70W (24V)
B2873	Cleaning drill	heating element
B2872	Handle	for gun configuration
A1512	Front holder
A1513	Back holder bushing
A1519	Cleaning sponge	yellow
A1536	Cleaning sponge * Discontinued. The replacement is "A1519".	green
A1013	Diaphragm (qty 2)
A1014	Valve plate (qty 2)

Options

Part No.	Name	Specifications
FM2026-03	HAKKO FM-2026	70W (24V)
FM2026-05	HAKKO FM-2026 conversion kit	70W (24V)
FM2027-01	HAKKO FM-2027 conversion kit	70W (24V)
FM2027-04	HAKKO FM-2027 conversion kit	70W (24V)
B2874	Cleaning pin	nozzle Φ0.6mm
B1086	Cleaning pin	nozzle Φ0.8mm
B1087	Cleaning pin	nozzle Φ1mm
B1088	Cleaning pin	nozzle Φ1.3mm
B1089	Cleaning pin	nozzle Φ1.6mm
B2875	Cleaning pin	nozzle Φ2mm / 2.3mm
599B	HAKKO 599B tip cleaner

Maintenance

Category	Title
How to use	HAKKO N2 system
How to use	Combinations of handpieces and soldering tips for the FM/FX series

More Information
Execution	TEC
Manufacturer Nr.	FM 204-11
Manufacturer	Hakko
EAN	4962615031045
Weight	0.009900
Note	Es gibt keine Lieferung von Hakko Produkten in die Schweiz
HS-Code	85151990
