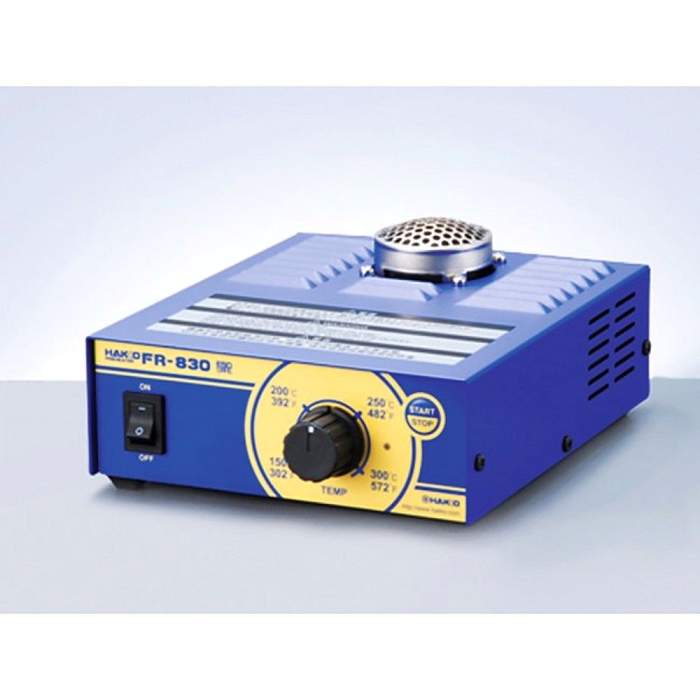

Hakko FR 830-12. Unterheizer analoge Ausführung für SMD-Rework Heißluft-Station FR 803/FR 810 Temperaturbereich 150 - 300 °C Maße (WxHxT): 140x75x185 mm Anschlußleistung 230 V - 250 W
554,97 € 466,36 €
exkl. Versandkosten
Artikel
HK-FR-830-12
Hersteller-Nr.
FR 830-12
Unterheizer analoge Ausführung für SMD-Rework Heißluft-Station FR 803/FR 810 Temperaturbereich 150 - 300 °C Maße (WxHxT): 140x75x185 mm Anschlußleistung 230 V - 250 W
Bilder dienen als Referenz und sind möglicherweise nicht genau, das tatsächliche Produkt kann abweichen.
Häufig zusammen gekauft
- Dieser Artikel: 554,97 € 466,36 €exkl. Versandkosten
- Hakko B 5193. Düsenhalter für Enlötpumpe FR 301 22,84 € 19,19 €exkl. Versandkosten
- Hakko FR 811-14. Modulares Heißluft und Reworksystem 2.109,63 € 1.772,80 €exkl. Versandkosten
| Compact pre-heater with quick start-up and excellent heat recovery. | |
 | Combined with HAKKO FR-803B(SMD Rework Station) |
 | ·Easy attachment with connecting cord which is included in HAKKO FR-803B ·Upgraded working efficiency by heating parts from top and bottom ·Operating FR-820 with buttons of HAKKO FR-803B (Start Ventilating/Cooling Down by pressing “HOT AIR” button on Handpiece of FR-803B) ·Automatically cool down after turning off the power |
 | Temperature regulating function · Temperature range 150-300°C(302-572°F) · CAL enables fine adjustment of temperature. |
 | Preheating in short time · The improved air outlet shorten preheat time compared with air conventional product.  * Click to enlarge * Please refer to above values, which vary depending on soldering condition. ·Hot air temperature 300ºC ·A gap between the hot air outlet and the PWB for 10mm ·Attach sensors to top/under sides of P.W.B and measure temperature. |
 | Suitable for multi-layer board preheating |
 | Automatic cool-down function mounted. · Pushing the "START/STOP" button at the end of work automatically activates the cool-down function. |
 | Compact, lightweight, and slightly larger hot air outlet. |
 | Various types of optional functions · Local heating enabled. A set of [Extension pipe w/ Lid] is available.  |
 | Various types of switching! [Hand switch][Foot switch] can be connected. |
| Using the optional equipments |
 | HAKKO FR-830 + Omnivise C1390C (2 used) (Rework system) + Extension pipe/with backflow prevention lid B3263 (option)
|
| Set example |
 | HAKKO FR-830 + SMD rework station HAKKO FR-803B (discontinued) + Rework fixture C1392B* + Omnivise C1390C* (2 used) （*Rework system） |
| Various types of switching! [Hand switch][Foot switch] can be connected. |
| Hand switch | Connection cord length: Approximately 100 cm Switch size: Approx. 30mm (W) × 40mm (D) × 20mm (H) When using the hand switch, switching is not possible on the main device.  |
| Foot switch | Connection cord length: Approximately 135 cm When using the foot switch, switching is not possible on the main device.  |
 | Controlling the temperatures of Hot Air Rework System and workpiece using the Temperature Probe  Measure temperatures of Hot Air Rework System and workpiece using the Temperature Probe for Hot Air Rework System (No. C1541) and thermometer (HAKKO FG-100/HAKKO FG-101) to protect the workpiece. | ||
 | |||
Replacement parts for Temperature Probe for Hot Air Rework System(No. C1541) How to Use the Temperature Probe for Hot Air Rework System(No. C1541) | |||
|
* Please refer to above values, which vary depending on soldering condition.
| Measuring condition | |
| ·Hot air temperature 300ºC ·A gap between the hot air outlet and the PWB for 10mm ·Attach sensors to top/under sides of P.W.B and measure temperature. |
Please keep a gap between the hot air outlet and the PWB for more than 10mm to allow the air to flow. When there is not enough space for the air to flow, the fuse may blow up. |
 |
 How to use
How to Use the Temperature Probe for Hot Air Rework System(No. C1541) | ||||||||
Packing List
| Model No. | Packing List |
| FR-830 | HAKKO FR-830, Power cord, Instruction manual |
Specifications
| Model No. | FR-830 |
|---|---|
| Power consumption | 210W (100V), 240W (110V), 470W (120V), 230W (220V), 250W (230V), 270W (240V) |
| Air flow | 0.15m3/min. (fan capability) |
| Temperature range | 150 to 300ºC (Above the blow exit) |
| Dimensions | 140(W)×75(H)×185(D)mm |
| Weight | 0.75kg |
* Weight (w/o cord)
* Height(H) is the distance from bottom of the feet to the top of the hot air outlet.
Options
| Part No. | Name | Specifications | |
|---|---|---|---|
 | B3263 | Extension pipe | with lid |
 | B2763 | Hand switch | |
 | B1649 | Foot switch | |
 | C1391B | Nozzle tray | |
 | C1392B | Rework fixture | |
 | C1390C | Omnivise |
Maintenance
| Ausführung | TEC |
|---|---|
| Hersteller-Nr. | FR 830-12 |
| Hersteller | Hakko |
| EAN | 4962615034923 |
| Gewicht | 0.009900 |
| Hinweis | Es gibt keine Lieferung von Hakko Produkten in die Schweiz |
| Zolltarifnummer | 84198900 |
