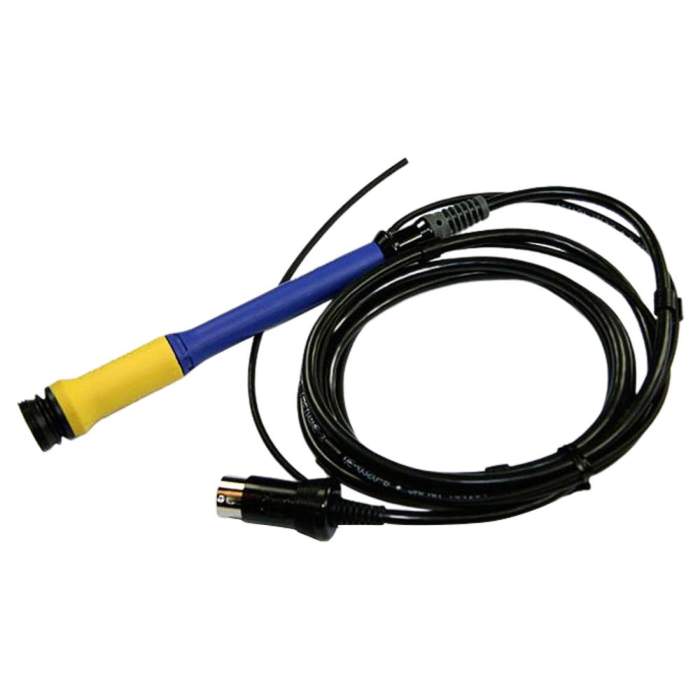

Hakko FX 8003-81. Stickstoff-Lötkolben 260 W für Hochleistungslötstation FX 801
227,35 €
191,05 €
exkl. Versandkosten
Artikel
HK-FX-8003-81
Hersteller-Nr.
FX 8003-81
Stickstoff-Lötkolben 260 W für Hochleistungslötstation FX 801
Bilder dienen als Referenz und sind möglicherweise nicht genau, das tatsächliche Produkt kann abweichen.
Häufig zusammen gekauft
-
Dieser Artikel:
227,35 € 191,05 €exkl. Versandkosten
-
Hakko FT 8004-81. Abisolierwerkzeug 70 W (20 V) - KIT für Thermo-Abisoliergerät FT 802
208,36 € 175,09 €exkl. Versandkosten
-
Hakko FR 301-20. Entlötpumpe 230V/110 W, Entlötpistole
357,24 € 300,20 €exkl. Versandkosten
The N2 gas and preheating effect have achieved significant improvement in soldering work!
N2 soldering iron providing 300W high output
Preheating effect
The hot N2 gas is effective for preheating.
Preventing oxidation
Powerful thermal recovery
Can be used in combination with your existing high power soldering station, HAKKO FX-801.
N2 System
Can be used in combination with the HAKKO FX-780/FX-781 and HAKKO FX-791 to create an N2 System.
Combination Example
218(W)×282(H)×211(D)mm
*Reference dimensions
| Name | Figure | Remarks | |
| 1 | HAKKO FX-801 |  | Station, Handpiece (FX-8002), Heat resistant pad, Power cord, Connecting cable, Iron holder (with cleaning wire), Instruction manual |
| Station | |||
| 2 | Iron holder |  | With HAKKO 599B |
| 3 |  | With cleaning sponge | |
| 4 | HAKKO FX-8003 |
| |
| N2 Soldering Iron | |||
| 5 | T33 Series |
Regular Type
Slim Type | Select the tip appropriate for work. |
| Tip | |||
| 6 | Nozzle assembly |
 | Select the nozzle assembly applicable to the tip. |
| 7 | N2 Generator |  FX-780: Small-capacity type FX-781: Large-capacity type, accepts 2 irons HAKKO FX-780/FX-781 | With Racks for Station Air tube Outer diameter: 6mm It can be placed perpendicularly or horizontally. |
| 8 | HAKKO FX-791 |  | |
| N2 Flow Meter | |||
| 9 | The others |
Air tube Outer diameter: 6mm | * The others are not provided by HAKKO |
Packing List
| Part No. | Packing List |
| FX8803-81 | N2 soldering iron, Instruction manual |
 | This unit does not include neither a soldering tip nor a nozzle assembly. When purchasing this unit, please buy your desired soldering tip and with nozzle assembly together. | |
T33 Series: Regular Type (for N2 system) T33 Series: Slim Type (for N2 system) | ||
 |  | This soldering iron cannot be used as a stand-alone unit. Click here for details. |
Specifications
| Model No. | FX8003-81 |
|---|---|
| Power consumption | 260W (29V) |
| Temperature range | 50 to 500ºC |
| Tip to ground resistance | <2Ω |
| Tip to ground potential | <2mV |
| Heating element | Composite heater |
| Cord length | 1.2m |
| Total length | 253mm (with 4BC tip) |
| Weight | 65g (with 4BC tip and nozzle assembly A) |
Replacement parts
| Part No. | Name | Specifications | |
|---|---|---|---|
 | B5071 | Nipple | with O-ring |
 | B2578 | O-ring | Inner dia 5.6 |
Maintenance
| Category | Title |
|---|---|
| How to use | Select Tip Shape |
| How to use | HAKKO N2 system |
| Maintenance | Why doesn't solder flow evenly onto a tip though it is brand-new? |
| Maintenance | If solder does not flow onto the tip... |
| Maintenance | Tip life |
| Maintenance | Why do tips oxidize easily when they are used with lead-free solder? |
| Ausführung | TEC |
|---|---|
| Hersteller-Nr. | FX 8003-81 |
| Hersteller | Hakko |
| EAN | 4962615044892 |
| Gewicht | 0.009900 |
| Hinweis | Es gibt keine Lieferung von Hakko Produkten in die Schweiz |
| Zolltarifnummer | 85151100 |
| GPSR Herstellerdaten | TBK - Technisches Büro Kullik GmbH Industriestrasse 27 DE-56276 Großmaischeid www.kullik.com |
| Artikel-Authentizität | Originalprodukt |
| Artikelzustand | Neu |
