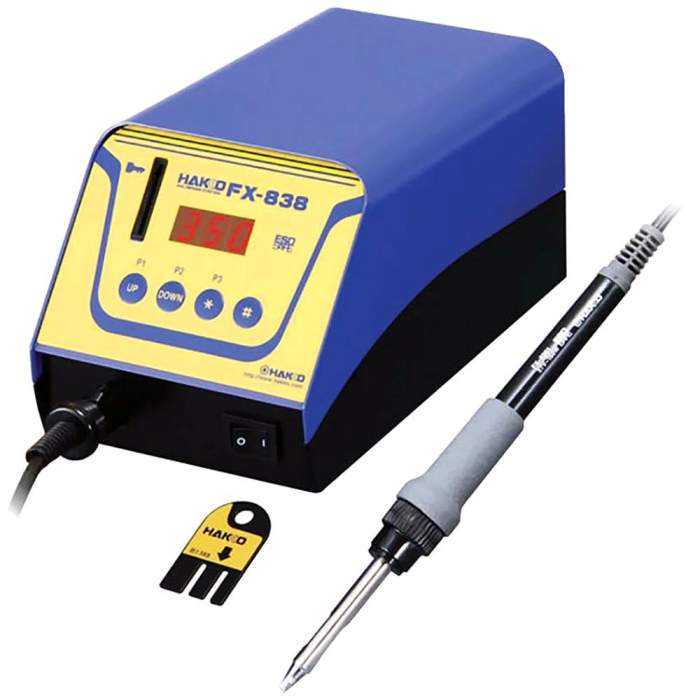

Hakko FX-838. High Powered Soldering Station 150W

Name: Hakko FX-838. High Powered Soldering Station 150W
Brand: Hakko
SKU: HK-FX-838-17
Price: 611.52 EUR
Availability: InStock

€611.52

Excl. 19% VAT , excl. Shipping Cost

Article

HK-FX-838-17

Manufacturer Nr.

FX 838-17

High powered 150W soldering iron with high heat capacity
Best suited for soldering of power-supply boards, heat sinks and shield cases
Applicable also for multilayer boards with micro components
Selectable soldering iron for N₂ system as usage at your option

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Hakko FX-838. High Powered Soldering Station 150W
€611.52

Excl. 19% VAT , excl. Shipping Cost
Hakko T20-D24. Soldering tip Shape-2.4D
€45.41

Excl. 19% VAT , excl. Shipping Cost
Hakko T20-D16. Soldering tip Shape-1.6D
€45.41

Excl. 19% VAT , excl. Shipping Cost

Total price

High Power 150W Soldering Station enjoys the various applications from large to fine components.

Great thermal recovery improves the soldering environment.(Refer to the graph bellow.)

· It allows soldering at lower set temperatures.
· It can shorten the soldering working time, which minimize concern about the influence of heat on components and tip life.(Refer to the graph bellow.)
It is suitable not only for high-power required working condition such as soldering multilayer boards or shield cases but for microsoldering.

	What benefit can be taken by Low set temperature and Cut in Soldering Working Time?
1.	They reduce the risk of the damage of heat-sensitive chips and workpieces.
2.	They diminish the oxidation of soldering tips. As for soldering with Lead-free solder which has high melting point, setting temperature tends to be set higher than soldering with eutectic solder. It stimulates the oxidation of tips and results in the short tip life. Why is the tip oxidize easily when using lead-free solder?

Operate at Maximum Temperature of 500 Degrees.

· It enables soldering power-supply boards easily because high power 150W hand piece can provide great thermal recovery.

High Power but Safety design of low voltage.

· This unit has not only high power but also low output voltage (27V) , which is lower than the world safety output voltage of 30V.

Easy to replace tips.

· Cartridge style Integrated heater makes thermal conductivity improve.
· Available 20 different shape as replacement, some of which are suitable for fine components.

HAKKO FX-838 replacement Tip List (T20 series)

Temperature preset mode saves time and effort.

· It allows you to input three frequently-used temperatures in advance and recall them with one push of a button.
· It saves the troublesome setting condition, tailored to the tip-shape, component and work.

Combination of optional handpiece allows use of N₂ system. N₂ system


	Great thermal recovery
	150W hand piece provides great thermal recovery, which allows soldering at lower set temperatures to!!minimize concern about the influence of heat on components and tip life.

High power saves the working time.

The high power shortens the working time.

- Test Condition

Test method	Solder at 5 points and measure the time until temperature of the workipiece reaches 250 degrees.
Board used	Bakelite board
Component	Terminal
Tip shape	Shape-1.6D
Temperature setting	340°C
Solder	Lead-free solder (Sn/Ag/Cu) ø0.5

Combination Example

	Name	Figure	Remarks
1	HAKKO FX-838		With Control card, Heat resistant pad, Power cord, Connecting cable and Instruction manual.(Not necessary to purchase this unit if you have it.)
	Station
2	Iron holder		With HAKKO 599B
3			With cleaning sponge
4	HAKKO FX-8302
	N₂ Soldering Iron
5	T20 Series		Select the tip appropriate for work.
	Tip
6	Nozzle assembly		Select the nozzle assembly applicable to the tip.
7	N₂ Generator	FX-780: Small-capacity type FX-781: Large-capacity type, accepts 2 irons HAKKO FX-780/FX-781	With Racks for Station Air tube Outer diameter: 6mm It can be placed perpendicularly or horizontally.
8	HAKKO FX-791
	N₂ Flow Meter
9	The others	Air tube Outer diameter: 6mm	* The others are not provided by HAKKO

Packing List

Model No.	Packing List
FX-838	Soldering station (HAKKO FX-838), Soldering iron (HAKKO FX-8301), Control card, Power cord, Iron holder (With cleaning sponge and 599B), Connecting cable, Heat resistant pad, Instruction Manual

NOTE:	A soldering tip is not included in this product. The tips (T20 series) of desired shape should be purchased separately.

Specifications

Model No.	FX-838
Power consumption	158W
Temperature range	200 to 500ºC
Temperature stability	±5ºC at idle temperature

・Station

Output voltage	AC 27V
Dimensions	110(W)×110(H)×205(D)mm
Weight	3.2kg

・Soldering Iron

Power consumption	150W (27V)
Tip to ground resistance	<2Ω
Tip to ground potential	<2mV
Heating element	Ceramic heater
Cord length	1.2m
Total length	175mm (with 2.4D tip)
Weight	31g (with 2.4D tip)

* Total length and weight (w/o cord)

Replacement parts

Part No.	Name	Specifications
599B	HAKKO 599B tip cleaner
FH200-02	Iron holder <w/ cleaning sponge>	with power-save function
FX8301-01	Soldering iron FX-8301	150W (27V)
B3253	Connecting cable
B2388	Control card
B2300	Heat resistant pad
FH200-01	Iron holder <w/ cleaning wire>	with power-save function
A1519	Cleaning sponge	yellow
A1536	Cleaning sponge * Discontinued. The replacement is "A1519".	green
B3524	Nipple
599-029	Cleaning wire

Options

	Part No.	Name	Specifications
	FX8302-01	Soldering iron FX-8302	150W (27V)

Maintenance

Category	Title
How to use	Select Tip Shape
How to use	Difference between BC/C type and BCF/CF type
How to use	HAKKO N2 system
How to use	Offset value input method (How to adjust the temperature on station-type units)
Maintenance	Why doesn't solder flow evenly onto a tip though it is brand-new?
Maintenance	If solder does not flow onto the tip...
Maintenance	Tip life
Maintenance	Why do tips oxidize easily when they are used with lead-free solder?
Maintenance	Maintenance and inspection of station-type soldering irons
Troubleshooting	The display shows only "- - -2", and the soldering tip does not heat up

More Information
Execution	TEC
Manufacturer Nr.	FX 838-17
Manufacturer	Hakko
EAN	4962615033216
Weight	0.009900
Note	Es gibt keine Lieferung von Hakko Produkten in die Schweiz
HS-Code	85151990
