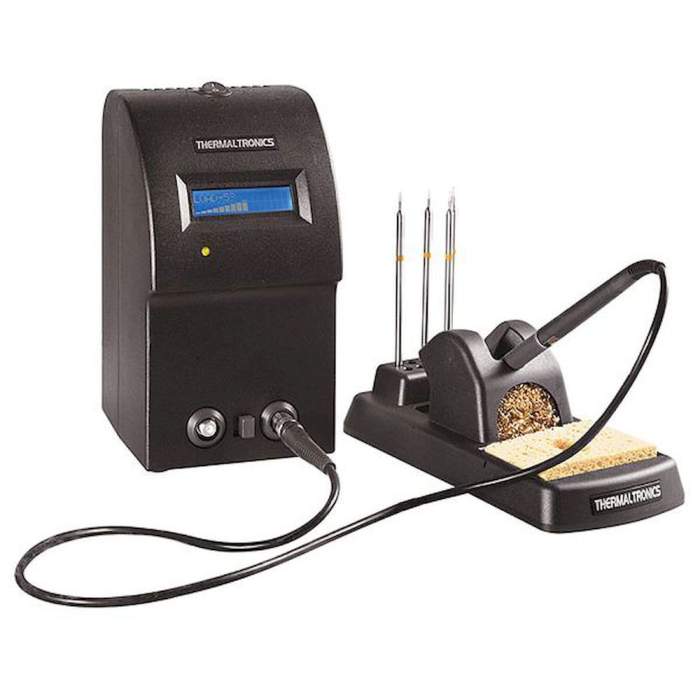

Thermaltronics TMT-9000S-2. Soldering station TMT-9000S-2, w/SHP-1 220-240VAC
€373.13
Excl. 19% VAT , excl. Shipping Cost
Article
WL37535
Manufacturer Nr.
TMT-9000S-2
Soldering station TMT-9000S-2, w/SHP-1 220-240VAC
Frequently Bought Together
-449-tmt-2000s-k.jpg?width=152&height=190&store=en&image-type=small_image)
- This Item: €373.13Excl. 19% VAT , excl. Shipping Cost
- Thermaltronics TMT-2000S-K (UPG). Soldering station TMT-2000S-K, w/SHP-K 100-240VAC €174.29Excl. 19% VAT , excl. Shipping Cost
- Thermaltronics AF-KIT-1M. Soldering station with tin supply for TMT-9000S €306.91Excl. 19% VAT , excl. Shipping Cost
Total price
- Idle temperature stability: +/- 1.1 °C (2 °F)
- Maximum enclosure temperature: 50 °C (122 °F)
- Surface resistance: 105 - 109 O/sq
- Voltage soldering tip to ground: <2 mV
- No training required for calibration and use
- No additional costs for coil mounting
- Mains voltage: TMT-9000PS-2 220-240 VAC
- Resistance Soldering tip to ground: <2 Ohms
- Fuse: TMT-9000PS-2 250V 0.5A "Slo-Blo
- Max. Power output: 40 Watt
- Output frequency: 13.56 MHz
- LCD display: 60mm x 16mm
- High thermal utilization and efficiency
- 13.56MHz power supply with integrated LCD display
- Two-stage solder ports
- replaces Metcal MX-500S-21
Product details
| item number | WL37535 |
| model | TMT-9000S-2 |
| manufacturer | THERMALTRONICS |
| manufacturer item number | TMT-9000S-2 |
| dimensions (LxWxH) | 132 mm x 118 mm x 212 mm |
| dimensions with packaging (LxWxH) | 380 mm x 240 mm x 190 mm |
| dimensions with packaging in inches (LxWxH) | 15 in x 9.4 in x 7.5 in |
| order unit | piece |
| frequency | 50/60 Hz |
| suitable tips | Series M |
| station type | soldering station |
| included accessories | RMP-1 Tip removal protection cloth, SG-1-GR soldering handpiece green handle, SG-1-GY soldering handpiece grey handle, BC-1 brass braid, SPG-1 sulfide free sponge |
| included stand | SHH-1 |
| included soldering tip | M7CH176 |
| included control unit | TMT-9000PS |
| included handpiece | SHP-1 |
| Manufacturer Nr. | TMT-9000S-2 |
|---|---|
| Manufacturer | Thermaltronics |
| Weight | 0.100000 |
