€6,576.52
Excl. 19% VAT , excl. Shipping Cost
Article
WL47982
Manufacturer Nr.
T0053359699N

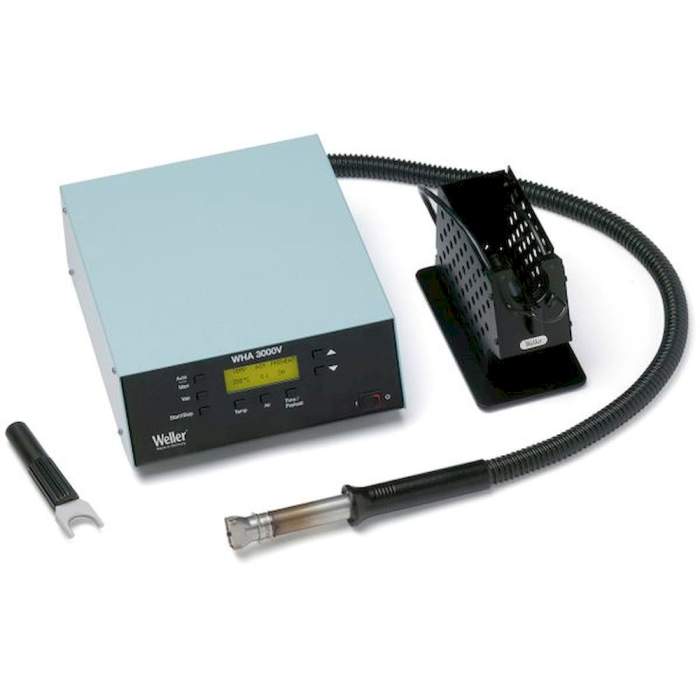

WHA 3000VS, digital hot air station set, 700 W
WHA 3000VS - Hot air station WHA 3000V including PCB holder WBHS with stand and preheating plate WHP 3000. For operation with compressed air or inert gas. The versatile system for repairing and reworking sensitive SMD components. The well thought-out device concept enables maximum process reliability and user-friendly handling. A wide range of different nozzles for all common SMD components is available for all units.
- with PCB holder WBHS with stand and preheating plate WHP 3000 - for operation with compressed air or inert gas
- Dimensions L x W x H (mm) 240 x 270 x 101 (WHA 3000V)
- voltage 220-230V/50-60Hz
- Compressed air connection Compressed air hose outer diameter 6 mm (0.24")
- Air consumption l/min 5 - 50
- Thermocouple connection 1x Type-K
- Temperature accuracy top heater ± 30 °C (± 54 °F)
- Temperature range Underheater (°C) 50 - 400
- Temperature range top heating (°C) 50 - 550
- Rated power underheater (W) 600
- Nominal power top heating (W) 700
- Power consumption 1075 W
- Max. hot air flow l/min 5 - 50
- Compressed air supply kPa/bar 400 - 600 / 4 - 6
- Compressed air connection Additional oil-free, dry compressed air
- Recommended component size (mm) 4.5 x 4.5 - 43 x 43
- Recommended module size (mm) 310 x 320
- Space requirement / working space L x W x H (mm) 600 x 600 x 500 (WHA3000V + WBHS + WHP3000)
- WT compatible
Product details
item number | WL47982 |
model line | WHA 3000 |
manufacturer | WELLER |
manufacturer item number | T0053359699N |
order unit | piece |
power | 700 W |
station type | hot air station |
ESD safe | yes |
Manufacturer Nr. | T0053359699N |
---|---|
Manufacturer | Weller |
Weight | 0.100000 |
