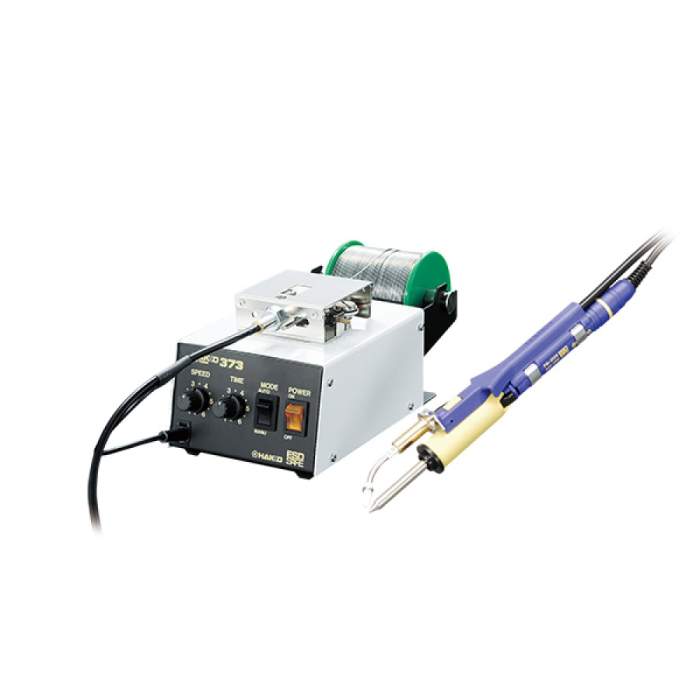

Hakko 373. Automatic Solder Feeder
€476.81
Excl. 19% VAT , excl. Shipping Cost
Article
HK-373-13
Manufacturer Nr.
373-13
- Automatic solder feeder that enables a user to complete soldering work just with one hand
- Solder feed time and speed are settable
The solder feed time and speed can be set.
Can adjust solder feed time and feed speed with the control knobs.
Can control solder feed amount by a combination of solder feed time and feed speed.
Operate in AUTO or MANUAL mode
AUTO MODE : If you press the feed switch, solder will be fed with set time and speed independently of length of pressing time.
MANUAL MODE : Solder will be fed with set speed during pressing the feed switch.
With the solder return mechanism
After feed solder, the specified length of solder can be returned.
Soldering robots may need this solder return function. Amount of solder return is adjustable within 0 to 5 mm.
With the solder return mechanism
HAKKO 374 with anti-solder-balling function is also available.
Soldering for one-handed operation
For applicable soldering irons or the part numbers of option parts, click here.
Soldering with a feeder pen
For the part numbers of feeder pen or option parts, click here.
 |
Applicable Soldering Iron |
| Station | Solderin iron * Click on the following link below jump to the table of the optional parts. |
|
| Station type |
HAKKO FM-203
HAKKO FM-206
|
For HAKKO FM-2027
For HAKKO FM-2030
|
|
HAKKO FX-100
|
For HAKKO FX-1001
|
|
|
HAKKO FX-801
|
For HAKKO FX-8002
|
|
|
HAKKO FX-838
|
For HAKKO FX-8301
|
|
|
HAKKO FR-701
HAKKO FR-702
HAKKO FX-888 (Discontinued)HAKKO FX-888D
HAKKO FX-889
|
For HAKKO FX-8801
For HAKKO FX-8805
|
|
|
HAKKO FX-950
HAKKO FX-951
HAKKO FX-952
|
For HAKKO FM-2028
|
|
| HAKKO 928 (Discontinued) |
For HAKKO 900M
For HAKKO 900L
* Not available for HAKKO 900S |
|
| HAKKO 931 (Discontinued) HAKKO 932 (Discontinued) |
For HAKKO 902 (Discontinued)
|
|
| HAKKO 929 (Discontinued) |
For HAKKO 904 (Discontinued)
|
|
| HAKKO 936 (Discontinued) HAKKO 937 (Discontinued) HAKKO 701 (Discontinued) |
For HAKKO 907
For HAKKO 908
|
|
| HAKKO 942 (Discontinued) |
For HAKKO 912 (Discontinued)
|
|
| Ceramic heater type | HAKKO DASH (Discontinued)
For N452/N453
For N454
|
|
| HAKKO MACH-I (Discontinued) * Tube units and guide pipe assembly are discontinued. |
||
| Hints On Use |
| 1. | I want to use the HAKKO 373 for a different solder diameter. Change the tube unit, guide pipe assembly, and solder diameter adjustment ring according to the solder diameter to be used. |
| 2. | I want to change the soldering iron used with the HAKKO 373/374. Change the iron holder, guide pipe assembly, and tube unit if they do not agree with the soldering iron to be used. |
・Soldering for one-handed operation
| *Ø1.6 Lead-free solder is NOT available for use. |
 |
Optional parts required: ・Solder Diameter Adjustment Ring ・Tube Unit ・Guide Pipe Assembly |
 |
Soldering Iron：FM-2030 |
| Usable Solder Dia | 0.6/0.65mm | 0.8mm | 1.0mm | 1.2mm | 1.6mm |
| Solder Diameter Adjustment Ring | B1626 | B1627 | B1628 | B1629 | - |
| Tube Unit | B3477 | B3478 |
- |
||
| Guide Pipe Assembly | B3726 | B3727 | B3728 | B3729 | - |
 |
Soldering Iron：FX-1001 * The spacer No.B5183 is required separately. |
| Usable Solder Dia | 0.6/0.65mm | 0.8mm | 1.0mm | 1.2mm | 1.6mm |
| Solder Diameter Adjustment Ring | B1626 | B1627 | B1628 | B1629 | - |
| Tube Unit | B3477 | B3478 | - | ||
| Guide Pipe Assembly | B3481 | B3482 | B3483 | B3484 | - |
 |
Soldering Iron：FX-8002 |
| Usable Solder Dia | 0.6/0.65mm | 0.8mm | 1.0mm | 1.2mm | 1.6mm |
| Solder Diameter Adjustment Ring | B1626 | B1627 | B1628 | B1629 | - |
| Tube Unit | B3477 | B3478 |
- |
||
| Guide Pipe Assembly | B5072 | B5073 | B5074 | B5075 | - |
 |
Soldering Iron：FX-8301 |
| Usable Solder Dia | 0.6/0.65mm | 0.8mm | 1.0mm | 1.2mm | 1.6mm(*) |
| Solder Diameter Adjustment Ring | B1626 | B1627 | B1628 | B1629 | B1630 |
| Tube Unit | B3563 | B3564 | |||
| Guide Pipe Assembly | B3566 | B3567 | B3568 | B3569 | B3570 |
| *Ø1.6 Lead-free solder is NOT available for use. |
 |
Soldering Iron：FM-2027 and FM-2028 |
| Usable Solder Dia | 0.6/0.65mm | 0.8mm | 1.0mm | 1.2mm | 1.6mm |
| Solder Diameter Adjustment Ring | B1626 | B1627 | B1628 | B1629 | - |
| Tube Unit | B3477 | B3478 | - | ||
| Guide Pipe Assembly | B3481 | B3482 | B3483 | B3484 | - |
 |
Soldering Iron：900M, N452 and N453 |
| Usable Solder Dia | 0.6/0.65mm | 0.8mm | 1.0mm | 1.2mm | 1.6mm(*) |
| Solder Diameter Adjustment Ring | B1626 | B1627 | B1628 | B1629 | B1630 |
| Tube Unit | B1631 | B1672 | |||
| Guide Pipe Assembly | B1674 | B1675 | B1676 | B1677 | B1678 |
| *Ø1.6 Lead-free solder is NOT available for use. |
 |
Soldering Iron：900L and N454 |
| Usable Solder Dia | 0.6/0.65mm | 0.8mm | 1.0mm | 1.2mm | 1.6mm(*) |
| Solder Diameter Adjustment Ring | B1626 | B1627 | B1628 | B1629 | B1630 |
| Tube Unit | B1631 | B1672 | |||
| Guide Pipe Assembly | B1679 | B1680 | B1681 | B1682 | B1683 |
| *Ø1.6 Lead-free solder is NOT available for use. |
 |
Soldering Iron：902 and 904 |
| Usable Solder Dia | 0.6/0.65mm | 0.8mm | 1.0mm | 1.2mm | 1.6mm(*) |
| Solder Diameter Adjustment Ring | B1626 | B1627 | B1628 | B1629 | B1630 |
| Tube Unit | B1957 | B1958 | |||
| Guide Pipe Assembly | B1694 | B1695 | B1696 | B1697 | B1698 |
| *Ø1.6 Lead-free solder is NOT available for use. |
 |
Soldering Iron：FX-8801 and 907 |
| Usable Solder Dia | 0.6/0.65mm | 0.8mm | 1.0mm | 1.2mm | 1.6mm(*) |
| Solder Diameter Adjustment Ring | B1626 | B1627 | B1628 | B1629 | B1630 |
| Tube Unit | B2143 | B2144 | |||
| Guide Pipe Assembly | B2146 | B2147 | B2148 | B2149 | B2150 |
| *Ø1.6 Lead-free solder is NOT available for use. |
 |
Soldering Iron：FX-8805 and 908 |
| Usable Solder Dia | 0.6/0.65mm | 0.8mm | 1.0mm | 1.2mm | 1.6mm(*) |
| Solder Diameter Adjustment Ring | B1626 | B1627 | B1628 | B1629 | B1630 |
| Tube Unit | B2143 | B2144 | |||
| Guide Pipe Assembly | B2151 | B2152 | B2153 | B2154 | B2155 |
| *Ø1.6 Lead-free solder is NOT available for use. |
 |
Soldering Iron：912 (Available only when attaching Long nipple) |
| Usable Solder Dia | 0.6/0.65mm | 0.8mm | 1.0mm | 1.2mm | 1.6mm |
| Solder Diameter Adjustment Ring | B1626 | B1627 | B1628 | B1629 | - |
| Tube Unit | B3479 | B3480 | - | ||
| Guide Pipe Assembly | B3481 | B3482 | B3483 | B3484 | - |
 |
Soldering Iron：918 |
| Usable Solder Dia | 0.6/0.65mm | 0.8mm | 1.0mm | 1.2mm | 1.6mm(*) |
| Solder Diameter Adjustment Ring | B1626 | B1627 | B1628 | B1629 | B1630 |
| Tube Unit (Discontinued) without switch |
|||||
| Guide Pipe Assembly (Discontinued) |
|||||
| *Ø1.6 Lead-free solder is NOT available for use. *A foot switch is available separately. |
 |
Soldering Iron：920, 921 and 922 |
| Usable Solder Dia | 0.6/0.65mm | 0.8mm | 1.0mm | 1.2mm | 1.6mm(*) |
| Solder Diameter Adjustment Ring | B1626 | B1627 | B1628 | B1629 | B1630 |
| Tube Unit (Discontinued) without switch |
|||||
| Guide Pipe Assembly (Discontinued) |
|||||
| *Ø1.6 Lead-free solder is NOT available for use. |
| *A foot switch is available separately. |
· Soldering with Feeder pen
 |
Optional parts required: ・Feeder Pen ・Switch ・Solder Diameter Adjustment Ring |
| As for the switch, please choose either Foot switch or Feeder switch as below. |
| Usable Solder Dia | 0.6/0.65mm | 0.8mm | 1.0mm | 1.2mm | 1.6mm | |
| Solder Diameter Adjustment Ring | B1626 | B1627 | B1628 | B1629 | B1630 | |
| Feeder Pen | C1234 | C1235 | ||||
| Switch | Foot Switch | B1649 | ||||
| Feeder Switch | B2124 | |||||
Specifications
| Model No. | 373 |
|---|---|
| Power consumption | 6W |
| Solder feed time | 0 to 7second |
| Solder feed speed | 4.5 to 26mm/sec. |
| Solder feed quantity | 0 to 182mm |
| Solder return quantity | 0 to 5mm (Fixed speed) |
| Mode | Auto/Manual |
| Usable solder diameter | Φ0.6, Φ0.65, Φ0.8, Φ1.0, Φ1.2, Φ1.6mm |
| Usable solder quantity | 1kg or less |
| Dimensions | 107(W)×110(H)×215(D)mm |
| Weight | 1.5kg |
* Solder feed time (Auto mode)
* Φ1.6mm lead free solder is not available for use.
* Weight (w/cord)
Replacement parts
| Part No. | Name | Specifications | |
|---|---|---|---|
 |
B1699 | Nozzle | 0.6mm |
 |
B1700 | Nozzle | 0.8mm |
 |
B1701 | Nozzle | 1mm |
 |
B1702 | Nozzle | 1.2mm |
 |
B1703 | Nozzle | 1.6mm |
Options
| Part No. | Name | Specifications | |
|---|---|---|---|
 |
B1626 | Solder dia. adjustment ring | 0.6mm, 0.65mm |
 |
B1627 | Solder dia. adjustment ring | 0.8mm |
 |
B1628 | Solder dia. adjustment ring | 1mm |
 |
B1629 | Solder dia. adjustment ring | 1.2mm |
 |
B1630 | Solder dia. adjustment ring | 1.6mm |
 |
B3481 | Guide pipe assembly | 373 : 0.6mm, 0.65mm / 374 : 0.6mm |
 |
B3482 | Guide pipe assembly | 0.8mm |
 |
B3483 | Guide pipe assembly | 1mm |
 |
B3484 | Guide pipe assembly | 1.2mm |
 |
B3726 | Guide pipe assembly | 373 : 0.6mm, 0.65mm / 374 : 0.6mm |
 |
B3727 | Guide pipe assembly | 0.8mm |
 |
B3728 | Guide pipe assembly | 1mm |
 |
B3729 | Guide pipe assembly | 1.2mm |
 |
B5072 | Guide pipe assembly | 373 : Φ0.6mm, Φ0.65mm / 374 : Φ0.6mm |
 |
B5073 | Guide pipe assembly | Φ0.8mm |
 |
B5074 | Guide pipe assembly | Φ1mm |
 |
B5075 | Guide pipe assembly | Φ1.2mm |
 |
B3566 | Guide pipe assembly | 373 : 0.6mm, 0.65mm / 374 : 0.6mm |
 |
B3567 | Guide pipe assembly | 0.8mm |
 |
B3568 | Guide pipe assembly | 1mm |
 |
B3569 | Guide pipe assembly | 1.2mm |
 |
B3570 | Guide pipe assembly | 1.6mm |
 |
B1674 | Guide pipe assembly * Discontinued |
373 : 0.6mm, 0.65mm / 374 : 0.6mm |
 |
B1675 | Guide pipe assembly * Discontinued |
0.8mm |
 |
B1676 | Guide pipe assembly * Discontinued |
1mm |
 |
B1677 | Guide pipe assembly * Discontinued |
1.2mm |
 |
B1678 | Guide pipe assembly * Discontinued |
1.6mm |
 |
B1679 | Guide pipe assembly * Discontinued |
373 : 0.6mm, 0.65mm / 374 : 0.6mm |
 |
B1680 | Guide pipe assembly * Discontinued |
0.8mm |
 |
B1681 | Guide pipe assembly * Discontinued |
1mm |
 |
B1682 | Guide pipe assembly * Discontinued |
1.2mm |
 |
B1683 | Guide pipe assembly * Discontinued |
1.6mm |
 |
B1684 | Guide pipe assembly * Discontinued |
for MACH, 373 : 0.6mm, 0.65mm / 374 : 0.6mm |
 |
B1685 | Guide pipe assembly * Discontinued |
for MACH 0.8mm |
 |
B1686 | Guide pipe assembly * Discontinued |
for MACH 1mm |
 |
B1687 | Guide pipe assembly * Discontinued |
for MACH 1.2mm |
 |
B1688 | Guide pipe assembly * Discontinued |
for MACH 1.6mm |
 |
B1689 | Guide pipe assembly * Discontinued |
for MACH, 373 : 0.6mm, 0.65mm / 374 : 0.6mm |
 |
B1690 | Guide pipe assembly * Discontinued |
for MACH 0.8mm |
 |
B1691 | Guide pipe assembly * Discontinued |
for MACH 1mm |
 |
B1692 | Guide pipe assembly * Discontinued |
for MACH 1.2mm |
 |
B1693 | Guide pipe assembly * Discontinued |
for MACH 1.6mm |
 |
B1694 | Guide pipe assembly | 373 : 0.6mm, 0.65mm / 374 : 0.6mm |
 |
B1695 | Guide pipe assembly | 0.8mm |
 |
B1696 | Guide pipe assembly | 1mm |
 |
B1697 | Guide pipe assembly | 1.2mm |
 |
B1698 | Guide pipe assembly | 1.6mm |
 |
B2146 | Guide pipe assembly | 373 : 0.6mm, 0.65mm / 374 : 0.6mm |
 |
B2147 | Guide pipe assembly | 0.8mm |
 |
B2148 | Guide pipe assembly | 1mm |
 |
B2149 | Guide pipe assembly | 1.2mm |
 |
B2150 | Guide pipe assembly | 1.6mm |
 |
B2151 | Guide pipe assembly | 373 : 0.6mm, 0.65mm / 374 : 0.6mm |
 |
B2152 | Guide pipe assembly | 0.8mm |
 |
B2153 | Guide pipe assembly | 1mm |
 |
B2154 | Guide pipe assembly | 1.2mm |
 |
B2155 | Guide pipe assembly | 1.6mm |
 |
B3477 | Tube unit M * The spacer No.B5183 is required separetely for FX-1001. |
with switch, 0.6 to 1mm |
 |
B3563 | Tube unit R | with switch, 0.6 to 1mm |
 |
B3564 | Tube unit S | with switch, 373 : 1.2-1.6mm / 374 : 1.2mm |
 |
B1631 | Tube unit A * Discontinued |
with switch, 0.6 to 1mm |
 |
B3478 | Tube unit N * The spacer No.B5183 is required separetely for FX-1001. |
with switch, 1.2mm |
 |
B1672 | Tube unit B * Discontinued |
with switch, 373: 1.2-1.6mm / 374: 1.2mm |
 |
B1632 | Tube unit C * Discontinued |
for MACH 0.6-1mm |
 |
B1673 | Tube unit D * Discontinued |
for MACH, 373 : 1.2-1.6mm / 374 : 1.2mm |
 |
B1957 | Tube unit E | with switch, 0.6 to 1mm |
 |
B1958 | Tube unit F | with switch, 373 : 1.2-1.6mm / 374 : 1.2mm |
 |
B2143 | Tube unit J | with switch, 0.6 to 1mm |
 |
B2144 | Tube unit K | with switch, 373 : 1.2-1.6mm / 374 : 1.2mm |
 |
B5183 | Spacer | for FX-1001 tube unit |
 |
C1234 | Feeder pen A | 0.6 to 1mm |
 |
C1235 | Feeder pen B | 1.2-1.6mm |
 |
B2124 | Feeder switch | |
 |
B1649 | Foot switch | |
 |
B1648 | Spring iron holder <b> * Discontinued |
|
 |
631-07 | Iron holder <w/ cleaning sponge> * Discontinued |
| Execution | TEC |
|---|---|
| Manufacturer Nr. | 373-13 |
| Manufacturer | Hakko |
| EAN | 4962615509353 |
| Weight | 2.500000 |
| Note | Es gibt keine Lieferung von Hakko Produkten in die Schweiz |
| HS-Code | 84609000 |
Download
Related Products
Check items to add to the cart or
