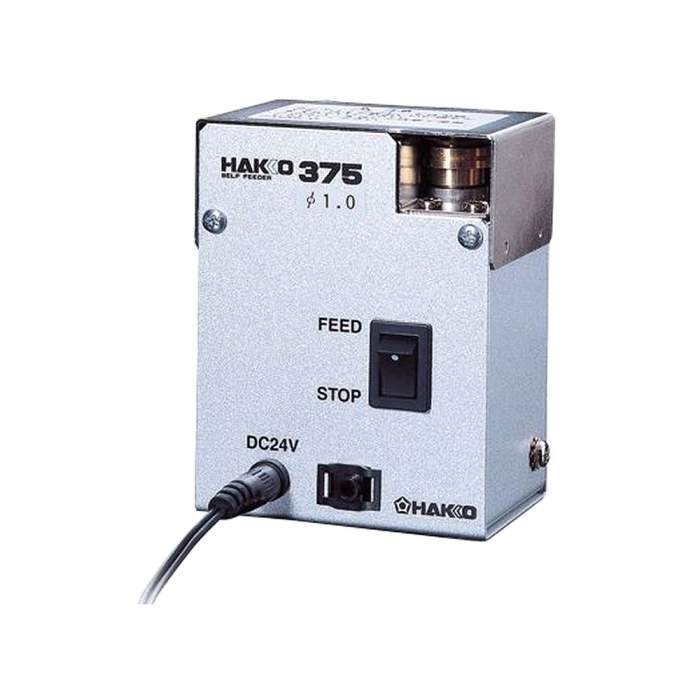

Hakko 375-08. Lötdrahtspender mit Kerbfunktion für Röhrenlote Durchmesser 1.0 mm
481,49 €
404,61 €
exkl. Versandkosten
Artikel
HK-375-08
Hersteller-Nr.
375-08
Lötdrahtspender mit Kerbfunktion für Röhrenlote Durchmesser 1.0 mm
Bilder dienen als Referenz und sind möglicherweise nicht genau, das tatsächliche Produkt kann abweichen.
Häufig zusammen gekauft
-
Dieser Artikel:
481,49 € 404,61 €exkl. Versandkosten
-
Hakko B 1649. Fußschalter für Geräte 373/374/375/FR 830
160,42 € 134,81 €exkl. Versandkosten
| Optimal for minimizing solder and flux splash Solder feeding equipment with V-grooving function for superior cost performance | |||||||||
 | Minimize solder and flux splash As shown below, when solder is cut with a V-groove it enables the release of gas pressure generated by the flux, thereby suppressing splash. However, because the V-groove exposes the flux to outside air the solder cannot be stored for a long period of time. When using solder with the HAKKO 375, you can groove the solder that you require.  HAKKO Document Portal You can browse and download "Instruction Manuals" and "SDS" freely.Even "Engineering Documents"are available once you complete user registration. Inquiry form | ||||||||
 | Advantages of V-grooved solder | ||||||||
| -Examination of solder/flux splash | |||||||||
 | |||||||||
Test criteria
*The effect of solder and flux splashing prevention may differ under different operation conditions. | |||||||||
| -Measurement graph of flux splash amount | |||||||||
| |||||||||
 | Applicable solder dia. ø0.3, ø0.5, ø0.6, ø0.8, ø1.0（mm） | ||||||||
 | Compact design | ||||||||
 | Can be applicable with the conventional solder reel stand. (Can be applicable with the HAKKO 611) -Application Examples  | |
 | Use an option switch to increase efficiency Control the amount of solder that is fed using the ON/OFF switch. Use an option switch or hand switch to increase functionality even more.  | |
Packing List
| Models | Packing List |
| No. 375 For Solder Dia. 0.3mm No. 375 For Solder Dia. 0.5mm No. 375 For Solder Dia. 0.6mm No. 375 For Solder Dia. 0.8mm No. 375 For Solder Dia. 1.0mm | Feeder Unit, AC Adapter |
Specifications
| Model No. | 375 |
|---|---|
| Rating | DC 24 V 75 mA |
| Solder feed speed | 27mm/sec. |
| Usable solder diameter | Φ0.3, Φ0.5, Φ0.6, Φ0.8, Φ1.0mm |
| Dimensions | 78(W)×98(H)×56(D)mm |
| Weight | 0.59kg |
・AC Adapter
| Output voltage | DC 24 V |
|---|
Options
| Part No. | Name | Specifications | |
|---|---|---|---|
 | B1649 | Foot switch | |
 | B2763 | Hand switch |
| Hand switch | Connection cord length: Approximately 135 cm Switch size: Approx. 30mm (W) × 40mm (D) × 20mm (H) When using the hand switch, switching is not possible on the main device.  |
| Foot switch | Connection cord length: Approximately 135 cm When using the foot switch, switching is not possible on the main device.  |
Maintenance
| Category | Title |
|---|---|
| How to use | What to do if I want to use 0.65mm dia. solder? |
| Maintenance | Care and cleaning after use |
| Maintenance | When and how to replace the cutting blade |
| Maintenance | When the change of solder wire diameter is desired |
| Ausführung | TEC |
|---|---|
| Hersteller-Nr. | 375-08 |
| Hersteller | Hakko |
| EAN | 4962615015908 |
| Gewicht | 0.009900 |
| Hinweis | Es gibt keine Lieferung von Hakko Produkten in die Schweiz |
| Zolltarifnummer | 84609000 |
| GPSR Herstellerdaten | TBK - Technisches Büro Kullik GmbH Industriestrasse 27 DE-56276 Großmaischeid www.kullik.com |
| Artikel-Authentizität | Originalprodukt |
| Artikelzustand | Neu |
