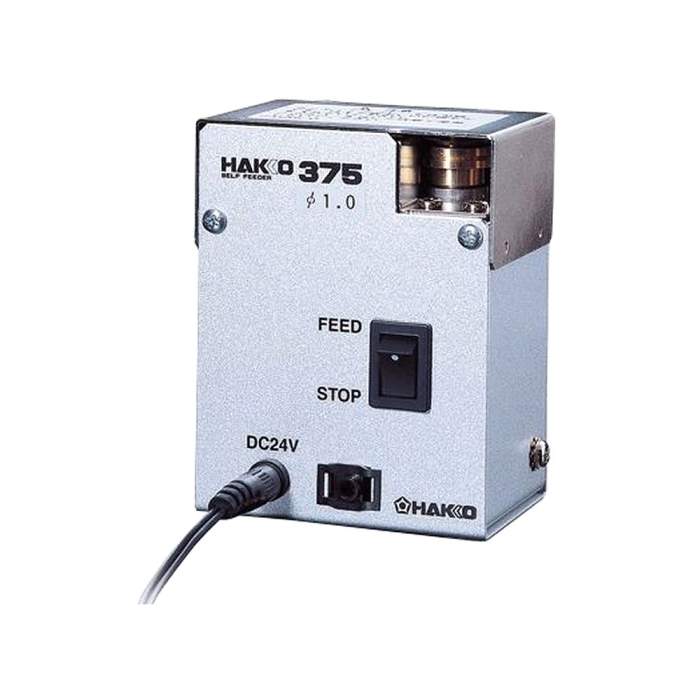

Hakko 375-07. Lötdrahtspender mit Kerbfunktion für Röhrenlote Durchmesser 0.8 mm

Name: Hakko 375-07. Lötdrahtspender mit Kerbfunktion für Röhrenlote Durchmesser 0.8 mm
Brand: Hakko
SKU: HK-375-07
Price: 481.485901 EUR
Availability: InStock

481,49 € 404,61 €

exkl. Versandkosten

Artikel

HK-375-07

Hersteller-Nr.

375-07

Lötdrahtspender mit Kerbfunktion für Röhrenlote Durchmesser 0.8 mm

Zum Ende der Bildgalerie springen

Zum Anfang der Bildgalerie springen

Bilder dienen als Referenz und sind möglicherweise nicht genau, das tatsächliche Produkt kann abweichen.

Optimal for minimizing solder and flux splash
Solder feeding equipment with V-grooving function for superior cost performance

Minimize solder and flux splash
As shown below, when solder is cut with a V-groove it enables the release of gas pressure generated by the flux, thereby suppressing splash. However, because the V-groove exposes the flux to outside air the solder cannot be stored for a long period of time.
When using solder with the HAKKO 375, you can groove the solder that you require.

HAKKO Document Portal

You can browse and download "Instruction Manuals" and "SDS" freely.
Even "Engineering Documents"are available once you complete user registration.

Inquiry form

Advantages of V-grooved solder

-Examination of solder/flux splash

Test criteria

Measurement method	Measure the amount of solder and flux splashing after solder is fed to the soldering iron.
Temperature setting for soldering iron	350ºC and 400ºC
Solder	Lead-free (Sn-3Ag-0.5Cu) Halogen-free flux ø0.3 mm and ø1.0 mm
Solder feed length	50 mm

*The effect of solder and flux splashing prevention may differ under different operation conditions.

-Measurement graph of flux splash amount

ø0.3mm *Click here to enlarge
ø1.0mm *Click here to enlarge

Applicable solder dia.
ø0.3, ø0.5, ø0.6, ø0.8, ø1.0（mm）

Compact design

	Can be applicable with the conventional solder reel stand. (Can be applicable with the HAKKO 611) -Application Examples

	Use an option switch to increase efficiency Control the amount of solder that is fed using the ON/OFF switch. Use an option switch or hand switch to increase functionality even more.

Packing List

Models	Packing List
No. 375 For Solder Dia. 0.3mm No. 375 For Solder Dia. 0.5mm No. 375 For Solder Dia. 0.6mm No. 375 For Solder Dia. 0.8mm No. 375 For Solder Dia. 1.0mm	Feeder Unit, AC Adapter

Specifications

Model No.	375
Rating	DC 24 V 75 mA
Solder feed speed	27mm/sec.
Usable solder diameter	Φ0.3, Φ0.5, Φ0.6, Φ0.8, Φ1.0mm
Dimensions	78(W)×98(H)×56(D)mm
Weight	0.59kg

・AC Adapter

Output voltage	DC 24 V

Options

	Part No.	Name	Specifications
	B1649	Foot switch
	B2763	Hand switch

Hand switch	Connection cord length: Approximately 135 cm Switch size: Approx. 30mm (W) × 40mm (D) × 20mm (H) When using the hand switch, switching is not possible on the main device.
Foot switch	Connection cord length: Approximately 135 cm When using the foot switch, switching is not possible on the main device.

Maintenance

Category	Title
How to use	What to do if I want to use 0.65mm dia. solder?
Maintenance	Care and cleaning after use
Maintenance	When and how to replace the cutting blade
Maintenance	When the change of solder wire diameter is desired

Weitere Informationen
Ausführung	TEC
Hersteller-Nr.	375-07
Hersteller	Hakko
EAN	4962615015878
Gewicht	0.009900
Hinweis	Es gibt keine Lieferung von Hakko Produkten in die Schweiz
Zolltarifnummer	84609000
GPSR Herstellerdaten	TBK - Technisches Büro Kullik GmbH Industriestrasse 27 DE-56276 Großmaischeid www.kullik.com
Artikel-Authentizität	Originalprodukt
Artikelzustand	Neu
