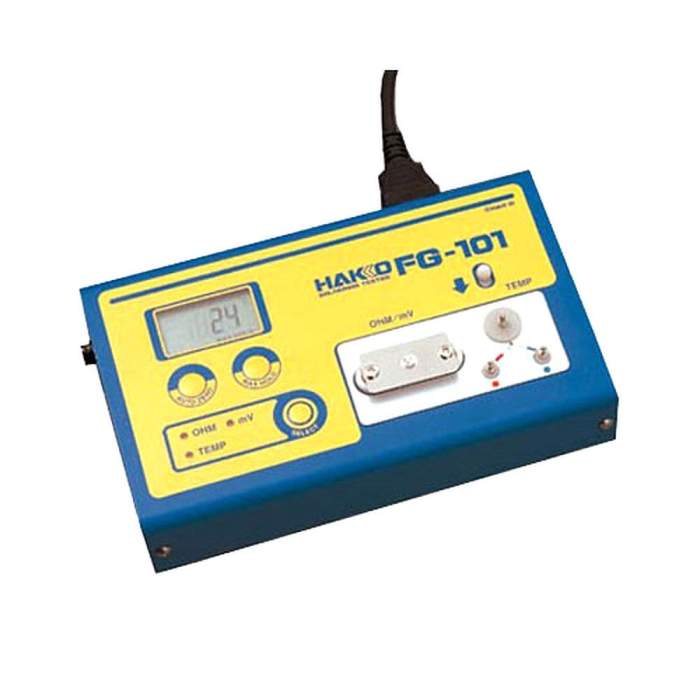

Hakko FG-101. Lötkolbenprüfgerät
1.142,60 €
960,17 €
exkl. Versandkosten
Artikel
HK-FG-101B-20
Hersteller-Nr.
FG-101
- Soldering iron tester useful for daily maintenance of station type soldering irons
- Tip temperature, leak voltage and tip-to-ground resistance can be easily measured with high accuracy
- MAX HOLD Function
Bilder dienen als Referenz und sind möglicherweise nicht genau, das tatsächliche Produkt kann abweichen.
Häufig zusammen gekauft
-
Dieser Artikel:
1.142,60 € 960,17 €exkl. Versandkosten
-
Hakko B 2763. Handschalter für Geräte 375/FR 830
47,25 € 39,71 €exkl. Versandkosten
-
Hakko C 5046. Düsenwechsler für Entlötpistole FR 301/FR 4103 mit 3-fach Depot für Düsen zum schnellen und einfachen Düsenwechsel
167,66 € 140,89 €exkl. Versandkosten
| One tester for all your soldering iron maintenance needs. | |||||||
 | What should you check when doing a daily inspection of your soldering iron? Grounded soldering irons are maintained by inspecting leak voltage, tip-to ground resistance, and tip temperature. Grounded soldering irons cannot be maintained by checking insulation resistance. This method was used in the past in order to find out the level of leak current.
What is 'Leak voltage'?Leak current is the current that leaks from the tip to a board or device. Leak voltage is a specific measurement of the level of this current. The leakage can adversely affect delicate devices, so it is necessary to check leak voltage on a daily basis. Click here for more details regarding leak voltage in station-type soldering irons.
What is 'Tip-to-ground resistance'?Most leak current flows from the tip via the ground wire to the outlet ground terminal, and is prevented from affecting the device. Because of this, tip-to-ground resistance is another important issue that must be checked daily. Click here for more details regarding tip-to-ground resistance in station-type soldering irons.
Why is tip temperature important?As the tip, element cover and other parts oxidize, heat conduction deteriorates and the tip temperature becomes lower. This causes the difficulty of soldering. Therefore, tip temperature should be inspected daily to have better soldering. Click here for more details regarding tip temperature in station-type soldering irons. | ||||||
 | Maximun current value mesured with HAKKO FG-101
| ||||||
 | In addition to traditional features, the FG-101 comes with two new functions: MAX HOLD and AUTO ZERO.
| ||||||
Why is the measured tip temperature lower than the set temperature? | |||||||
 MAX HOLD Function |
 When the MAX HOLD function is on, the maximum temperature is constantly displayed on the LCD.If the MAX HOLD button is pressed for a short time (less than 1 second) the maximum temperature is updated. If the button is pressed for a long time (1 second or longer) the MAX HOLD function turns off. |
 AUTO ZERO Function |
The zero point error of measuring instruments can be corrected by simply pressing the AUTO ZERO button and waiting for the display to return to normal. |
 How to measure the tip temperature, leak voltage and tip to ground resistanceHow to measure the soldering tip temperature How to measure the leak voltage How to measure the tip to ground resistance Do not blow hot air (for example, with the HAKKO FR-802, etc.) directly onto the HAKKO FG-101 to measure the temperature. If the hot air is blown directly onto the tester, the main unit of HAKKO FG-101 itself will be damaged. Please use the temperature probe for Hot Air Rework System How to use temperature trobe for Hot Air Rework System (No. C1541)  When using the HAKKO FG-101, plug it into the outlet with a grounding terminal. The HAKKO FG-101 cannot measure the leak voltage and tip to ground resistance of a soldering iron which has no grounding pin. It can measure the leak voltage and tip to ground resistance of a soldering iron which has a plug with grounding pin. |
 Differenced in the measurement methods according to tip shapesFor the precise temperature measurement, place the tip on the measuring point on sensor horizontally. How to place the tip on the temperature measuring point on sensor  Guaranteed temperature range with the measurement tolerance of ±3°CIn general, the optimal temperature range for soldering is 300°C to 500°C, and that for SMD rework system is 300°C to 600°C. The tolerance of ±3°C within the optimal temperature range (300°C to 600°C) is assured. For the temperature range other than the above, the tolerance is not guaranteed but usually stays in the range of about ±5°C. |
Packing List
| Part No. | Packing List |
| FG101 | HAKKO FG-101,Fuse,Conduction Wire,Sensor (10 pcs/set),Multi-adapter,European Adapter,Ground Clip,Power cord,Instruction Manual |
| HAKKO FG-101 should be calibrated regularly as a Tester / Meter. For details, please contact us or the distributors in your country. |
Specifications
| Model No. | FG-101 |
|---|---|
| Power consumption | 2.6W (100V), 2.9W (110V), 2.6W (120V), 2.7W (220V), 2.8W (230V), 3.0W |
| Temperature resolution | 1ºC |
| Temperature measurement range | 0 to 700ºC |
| Temperature precision | ±3ºC (300 to 600ºC) ±5ºC (other than above) (with alkaline battery) |
| Temperature sensor | K (CA)type thermocouple (between object being measured and sensor) |
| Voltage resolution | 0.1mV |
| Voltage measurement range | 0 to 40mV (in increments of 45º) |
| Voltage precision | ± (5% of reading + 1 digit) |
| Resistance resolution | 0.1Ω |
| Resistance measurement range | 0 to 40Ω |
| Resistance precision | ± (5% of reading + 1 digit) |
| Display | LCD : 3 1/2digits Burnout : -1 MAX HOLD : 'MAX HOLD' is displayed at the lower right of the LCD. (without condensation) |
| Operating environment | Ambient temperature/humidity range : 0 to 40ºC, 20 to 90%RH |
| Environmental conditions | Applicable rated pollution degree 2 |
| Dimensions | 200(W)×50(H)×120(D)mm |
| Weight | 1kg |
* Weight (excluding battery)
* Temperature sensor (No.191-212 or No.191-212C) can only be used ti measure temperatures below 500ºC. To measure higher temperatures, use an applicable temperature probe.
* When a sensor is not attached or it burns out,the alarm symbol of Burnout(-1) is displayed. The same symbol is also displayed when a temperature outside the measurement range is detected.
Burnout*2 |
Replacement parts
| Part No. | Name | Specifications | |
|---|---|---|---|
 | 191-212 | Sensor (qty 10) | lead-free |
 | B1950 | Conduction wire | |
 | B1754 | Ground clip | |
 | B1752 | Conduction plate |
 Change-out rate of sensorThe sensor replacement period is about 50 times per single sensor in general, but this changes depending on the temperature used and the components in the solder and flux. If you use lead-free solder, the sensor needs to be replaced more frequently. If the sensor degrades because it is being eaten away by the solder, it will register a low temperature. Even if the sensor is not broken, replace it after about 50 measurements. Even if the soldering tip has degraded, the temperature will register extremely low. Keep these points in mind and decide on the sensor replacement period. Caution: The sensor is extremely thin and may break if pushed with force. |
Options
| Part No. | Name | Specifications | |
|---|---|---|---|
 | A1310 | Temperature probe | for soldering bath & pot |
 | C1541 | Temperature probe | hot air |
 | A1556 | Sensor A | |
 | A1557 | Sensor B |
A1310  | C1541  |
Maintenance
Video
| Preview | Title |
|---|---|
 | Tips & hints for measuring soldering tip temperature |
| Ausführung | TEC |
|---|---|
| Hersteller-Nr. | FG-101 |
| Hersteller | Hakko |
| Ursprungsland | Japan |
| Gewicht | 0.009900 |
| Hinweis | Es gibt keine Lieferung von Hakko Produkten in die Schweiz |
| GPSR Herstellerdaten | TBK - Technisches Büro Kullik GmbH Industriestrasse 27 DE-56276 Großmaischeid www.kullik.com |
| Artikel-Authentizität | Originalprodukt |
| Artikelzustand | Neu |
