WX 2011 PICO MS Soldering Station Set
Weller WX stations make the manual soldering process safer, a crucial factor in the automotive, aerospace and medical technology industries. This station set is especially designed to meet the MIL-SPEC / IPC standards to save sensitive components from electrical overstress by using Weller’s RT MS soldering tips. Weller offers a wide range of RT MS tips to solder components with the size from XS to S.
A safe soldering process is guaranteed by many features of the Weller WX station like temperature and tool locking, and tool-specific temperature settings.
Integrated USB ports provide the WX bench top control units with a connection to and control over soldering fume extractors, pre-heat plates and programmable logic controllers (PLC).
Firmware updates and registration are quick and easy by using USB sticks. Parameters such as standby temperatures and automatic switch-off time can easily be stored in the soldering iron. Parameters only need to be stored once; the MS soldering iron can then use them with any WX station.
- For high precision micro soldering applications: 0402 to 01005
- Component size XS to S
- Station works as a benchtop controller to control tips, tools, fume extraction and peripheric tools
- 2 channels for simultaneous work of 2 tools with intelligent tool detection
- Extremely fast heat-up time: 3 sec.
- Triple awarded active tip technology are fully compliant with MIL-SPEC / IPC Standard
- Intelligent iron with motion sensor and integrated data storage
- Toolless tip change
- Traceability ready
- Solder wire SAC M1 for best flow behaviour and homogeneous flux distribution
- 2-in-1 safety rest for wet and dry tip cleaning.
- Erem 5SA precision tweezers, suitable for very fine wires; Swiss Made
Product details
item number | WL48186 |
model line | WX 2 |
manufacturer | WELLER |
manufacturer item number | T0053422671 |

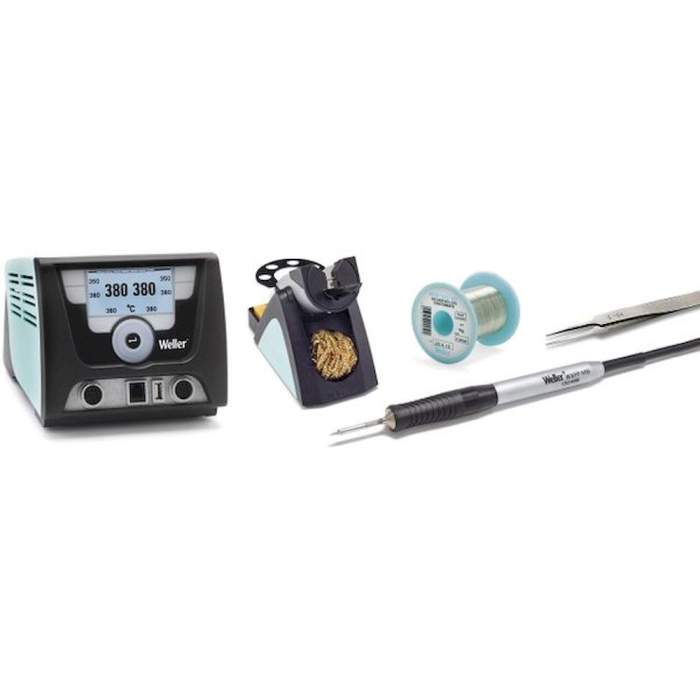

scope of supply | WX 2 soldering station Power Unit, 230 V F/G Intelligent pico soldering iron WXPP MS 12 V, 40 W with tip RTP004SMS Safety rest WSR 208 Erem tweezers 5SA Solder wire SAC M1, 0.2 mm |
order unit | piece |
station type | soldering station |
Manufacturer Nr. | T0053422671 |
---|---|
Manufacturer | Weller |
Weight | 0.100000 |
