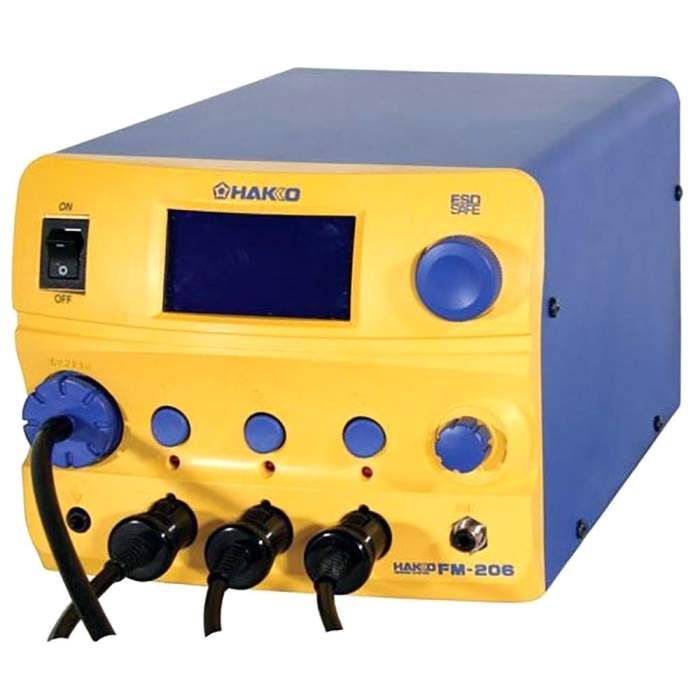

Hakko FM 206-17. Multifunktion 3-Port Rework-Station
2.295,94 €
1.929,36 €
exkl. Versandkosten
Artikel
HK-FM206-17
Hersteller-Nr.
FM 206-17
Multifunktion 3-Port Rework-Station Löten - Entlöten - Heißgaslöten Leistungsaufnahme : max 410 W (24 V) Kapazität (max): 6 l/min Unterdruckgenerator : Vakuumpumpe, cylinder type Unterdruck (max): 80 kPa (600 mmHg) inclusive : FM 2027-03 Lötkolben 70 W (2
Bilder dienen als Referenz und sind möglicherweise nicht genau, das tatsächliche Produkt kann abweichen.
Häufig zusammen gekauft
-
Dieser Artikel:
2.295,94 € 1.929,36 €exkl. Versandkosten
-
Hakko FR 400-70. Hochleistungs-Entlötstation 320 Watt mit Vakuumpumpe
1.910,55 € 1.605,50 €exkl. Versandkosten
-
Hakko FR 410-70. Entlötstation 140 Watt mit Vakuumpumpe
1.277,47 € 1.073,50 €exkl. Versandkosten
 | Combines soldering, desoldering, and rework functions in a compact body. | ||||||||||||||||||
| Features expandability in which the handpiece can be switched as needed for added functions. Comes with hot air-type rework functions and expands the range of repair of SMD parts with hot air handpiece. | |||||||||||||||||||
 | Supplied tools | ||||||||||||||||||
| |||||||||||||||||||
 | FM-2027 lock-type soldering iron | ||||||||||||||||||
The sleeve of the FM-2027 soldering iron can be locked to secure the tip. | |||||||||||||||||||
 | FM-2024 The integrated nozzle containing both heating element and sensor provides higher thermal recovery than conventional tips. | ||||||||||||||||||
| |||||||||||||||||||
 | FM-2029 has a slender grip ideal for work in narrow spaces. | ||||||||||||||||||
| |||||||||||||||||||
 | Large LCD panel for easy operation | ||||||||||||||||||
Uses a large LCD for easy panel reading and easy, stress-free setting changes. | |||||||||||||||||||
 |
| Receptacle1 | Receptacle2 | Receptacle3 |
|---|---|---|
FM-2024(*1)
FM-2026
FM-2027
FM-2032 |
FM-2022
FM-2023
FM-2024(*1)
FM-2026
FM-2027
FM-2030
FM-2031
FM-2032 |
FM-2024(*1)
FM-2026
FM-2027
FM-2029(*2)
FM-2030
FM-2031
FM-2032 |
| *1 HAKKO FM-2024 can be connected to FM-206 receptacles 1, 2, and 3, but it can only be used with one receptacle. |
| *2 HAKKO FM-2029 can only be used with FM-206 receptacle 3. |
Packing List
| Model No. | Packing List |
| FM206-** | Station, Power cord, FM-2024 conversion kit, Tip tray, FM-2027 conversion kit, FM-2029 conversion kit, Instruction manual |
| Note:A soldering tip is not included in this product. The tip of desired shape should be purchased separately. |
Specifications
| Model No. | FM-206 |
|---|---|
| Power consumption | 410W (Max.) |
| Temperature range | FM-2026/2027：200 to 450ºC FM-2022/2023：200 to 400ºC FM-2024：350 to 450ºC FM-2029：100 to 550ºC FM-2030：200 to 500ºC FM-2031：200 to 500ºC FM-2032：200 to 450ºC |
| Temperature stability | ±5ºC at idle temperature |
・Station
| Output voltage | AC 24V |
|---|---|
| Vacuum generator | Vacuum pump, cylinder type |
| Vacuum pressure | 80kPa (600mmHg) (Max.) |
| Suction flow | 14L/min. |
| Air flow | 6L/min. (Max.) |
| Dimensions | 162(W)×136(H)×245(D)mm |
| Weight | 6.2kg |
・Soldering Iron
| Power consumption | 70W (24V) |
|---|---|
| Tip to ground resistance | <2Ω |
| Tip to ground potential | <2mV |
| Heating element | Composite heater |
| Cord length | 1.2m |
| Total length | 188mm (with 2.4D tip) |
| Weight | 30g (with 2.4D tip) |
・Desoldering Tool
| Power consumption | 70W (24V) |
|---|---|
| Nozzle to ground resistance | <2Ω |
| Nozzle to ground potential | <2mV |
| Heating element | Composite heater |
| Cord length | 1.2m |
| Total length | 180mm (with Φ1.0mm nozzle) |
| Weight | 65g (with Φ1.0mm nozzle) |
・Handpiece (Hot air) : for FM-206
| Power consumption | 140W (24V) |
|---|---|
| Nozzle to ground resistance | <2Ω |
| Nozzle to ground potential | <2mV |
| Heating element | Composite heater |
| Cord length | 1.2m |
| Total length | 232mm (with Φ4.0mm nozzle) |
| Weight | 50g (with Φ4.0mm nozzle) |
* Total length and weight (w/o cord)
* Total length and weight for handpiece (Hot air) (w/o cord, tube)
Replacement parts
| Part No. | Name | Specifications | |
|---|---|---|---|
 | FM2022-02 | Handpiece Model FM-2022 | 140W (24V) |
 | FM2027-02 | Connector assembly | |
 | B3216 | Sleeve assembly | yellow |
 | FM2029-02 | Hot air handpiece FM-2029 | 140W (24V) |
 | B3253 | Connecting cable | |
 | B2300 | Heat resistant pad | |
 | B2756 | Tip tray | |
 | C5034 | Iron holder | |
 | C5034 | Handpiece holder <w/ handpiece holder cover> | with power-save function |
 | FH200-03 | Iron holder <w/ cleaning sponge> | with power-save function |
 | FH200-02 | Iron holder <w/ cleaning sponge> | with power-save function |
 | FM2024-xx | HAKKO FM-2024 conversion kit | |
 | FM2027-01 | HAKKO FM-2027 conversion kit | 70W (24V) |
 | FM2027-03 | HAKKO FM-2027 conversion kit | 70W (24V) |
 | FM2029-01 | HAKKO FM-2029 conversion kit | 140W (24V) |
C5034 is for FM-2029
FH200-03 is for FM-2022
FH200-02 is for FM-2027
Options
| Part No. | Name | Specifications | |
|---|---|---|---|
 | FM2022-04 | HAKKO FM-2022 conversion kit | 140W (24V),for Japan, Oceania, Asia & Other countries |
 | FM2022-05 | HAKKO FM-2022 conversion kit | 140W (24V),for North America & EU |
 | FM2023-04 | HAKKO FM-2023 conversion kit | 140W (24V),for Japan, Oceania, Asia & Other countries |
 | FM2023-05 | HAKKO FM-2023 conversion kit | 140W (24V),for North America |
 | FM2023-06 | HAKKO FM-2023 conversion kit | 140W (24V),for EU |
 | FM2026-03 | HAKKO FM-2026 | 70W (24V) |
 | FM2026-04 | HAKKO FM-2026 conversion kit | 70W (24V),for Japan, Oceania, Asia & Other countries |
 | FM2026-06 | HAKKO FM-2026 conversion kit | 70W (24V),for North America & EU |
 | FM2030-02 | HAKKO FM-2030 conversion kit | |
 | FM2031-02 | HAKKO FM-2031 conversion kit | 140W (24V) |
 | FM2032-52 | HAKKO FM-2032 conversion kit | |
 | B3218 | Sleeve assembly | blue |
 | B3219 | Sleeve assembly | green |
 | B3217 | Sleeve assembly | orange |
 | 599B | HAKKO 599B tip cleaner |
B3687 is a nipple for FM-2030
Maintenance
| Category | Title |
|---|---|
| How to use | Select Tip Shape |
| How to use | Difference between BC/C type and BCF/CF type |
| How to use | HAKKO N2 system |
| How to use | Offset value input method (How to adjust the temperature on station-type units) |
| How to use | Combinations of handpieces and soldering tips for the FM/FX series |
| Maintenance | Why doesn't solder flow evenly onto a tip though it is brand-new? |
| Maintenance | If solder does not flow onto the tip... |
| Maintenance | Tip life |
| Maintenance | Why do tips oxidize easily when they are used with lead-free solder? |
| Maintenance | Maintenance and inspection of station-type soldering irons |
Video
| Preview | Title |
|---|---|
 | disabling the buzzer sound |
 | using temperature offset function |
| Ausführung | TEC |
|---|---|
| Hersteller-Nr. | FM 206-17 |
| Hersteller | Hakko |
| EAN | 4962615038525 |
| Gewicht | 0.009900 |
| Hinweis | Es gibt keine Lieferung von Hakko Produkten in die Schweiz |
| Zolltarifnummer | 85151990 |
| GPSR Herstellerdaten | TBK - Technisches Büro Kullik GmbH Industriestrasse 27 DE-56276 Großmaischeid www.kullik.com |
| Artikel-Authentizität | Originalprodukt |
| Artikelzustand | Neu |
