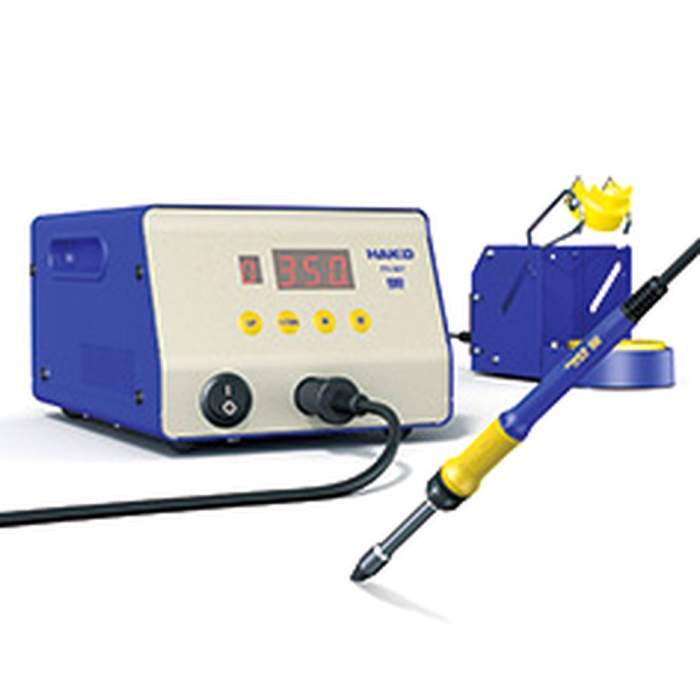

Hakko FX-801. Super Power Soldering Station 300W
- Super power 300 Watts
- Best suited for soldering PWB with high heat capacity and high heat dissipation property
- Compatible with N2 system by purchasing N2 iron (FX-8003) as an optional accessary
Make the impossible possible with Super Power of 300 W Heater.
FX-801 can provide tremendous heating performance with super power 300 W composite heater.
Light weight handpiece -approx. 50 g
Light weight handpiece provides good workability and reduces burden in hand soldering.
Large LED display
An LED display roughly double the size of a previous model is very easy to see.
Preset mode
Up to 6 settings can be preset and easily called up by Up/Down buttons.
This is a convenient function to change set temperature quickly.
Password function
Settings can be locked from unnecessary changes by password function.
Strict temperature control is possible.
Auto Sleep/Auto Shut-off function
The function automatically drops tips tempetaure or turns off heater just by placing a handpiece in the holder. This minimizes oxidation and thermal stress to soldering tip.
Handles on unit body
Handles on unit body make it easy to carry.
A wide variety of tip shapes
In addition to regular type tips, now slim type tips are added to the tip line-up to cover a wide range of applications. The composite tip, tip integrated with composite heater, makes tip replacement very easy.
Regular type
Best suited for components with high thermal mass such as transformers and coils.
T33 Series Regular Type
Slim type
Slimmed-down tips for narrow spaces without losing of enough power.
T33 Series Slim Type
| Regular type Shape-2.4D | Slim type Shape-2.4SSD |
| Shape Concave | |
|---|---|
| By the tip design to make larger contact area with land patern for better thermal transfer, it improves through hole fill and soldering on high thermal mass PWB. Click here for details. | |
 | |
| Insufficient flow-up | Successful flow-up |
Compatible with N2 System (Option)
Replacing an iron part (FX-8002) with an optional N2 iron part (FX-8003), it enables use of N2 system.
 Setup example | Improve solderability and wettability with the HAKKO N2 system. *Requires a variety of equipment in addition to the N2 soldering iron. Click here for details. |
| Model No. | Packing List |
| FX-801 | Station, Handpiece (FX-8002), Heat resistant pad, Power cord, Connecting cable, Iron holder (with cleaning wire), Instruction manual |
| Model No. | FX-801 |
|---|---|
| Power consumption | 300W |
| Temperature range | 50 to 500ºC |
| Temperature stability | ±5ºC at idle temperature |
・Station
| Output voltage | AC 29V |
|---|---|
| Dimensions | 145(W)×107(H)×211(D)mm |
| Weight | 3.9kg |
・Soldering Iron
| Power consumption | 260W (29V) |
|---|---|
| Tip to ground resistance | <2Ω |
| Tip to ground potential | <2mV |
| Heating element | Composite heater |
| Cord length | 1.2m |
| Total length | 228mm (with 4BC tip) |
| Weight | 50g (with 4BC tip) |
* Total length and weight (w/o cord)
| Part No. | Name | Specifications | |
|---|---|---|---|
 | FX8002-81 | Soldering iron FX-8002 | |
 | FH200-83 | Iron holder <w/ cleaning wire> | |
 | B2300 | Heat resistant pad | |
 | B3253 | Connecting cable | |
 | 599B | HAKKO 599B tip cleaner |
| Part No. | Name | Specifications | |
|---|---|---|---|
 | FX8003-81 | Soldering iron FX-8003 | |
 | FH200-82 | Iron holder <w/ cleaning sponge> | |
 | A1519 | Cleaning sponge | yellow |
 | A1536 | Cleaning sponge * Discontinued. The replacement is "A1519". | green |
| Category | Title |
|---|---|
| How to use | Select Tip Shape |
| How to use | HAKKO N2 system |
| Maintenance | Why doesn't solder flow evenly onto a tip though it is brand-new? |
| Maintenance | If solder does not flow onto the tip... |
| Maintenance | Tip life |
| Maintenance | Why do tips oxidize easily when they are used with lead-free solder? |
| Maintenance | Maintenance and inspection of station-type soldering irons |
| Execution | TEC |
|---|---|
| Manufacturer Nr. | FX 801-10 |
| Manufacturer | Hakko |
| EAN | 4962615045110 |
| Weight | 0.009900 |
| Note | Es gibt keine Lieferung von Hakko Produkten in die Schweiz |
| HS-Code | 85151990 |
